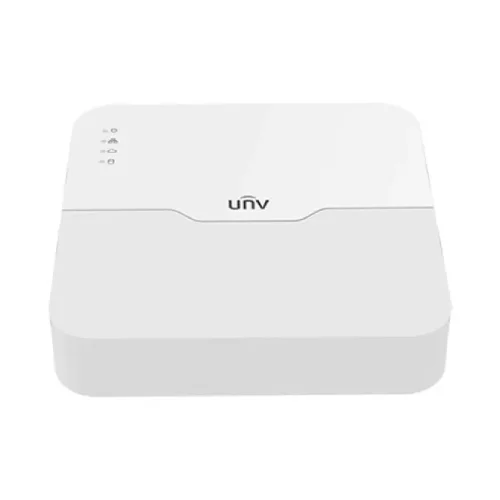

Uniview NVR301-04LS2 4 Channel 1 SATA NVR
Key Features
- Model : NVR301-04LS2
- Input : 4 Channel 1 SATA NVR
- Storage Capacity : Up to 6TB for each disk
- Recording Resolution : Up to 6MP
- Features : Motion, Human Body Detection, Video Loss, Alarm Input
Description
Specification
| Audio and Video | ||
| IP Camera Input | 4 Channel | |
| Display | ||
| Interface | 1 x HDMI port 1 x VGA port |
|
| Decoding Capacity | 1 x 6MP@20, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080p@30, | |
| Recording | ||
| Compression | Ultra 265/H.265/H.264 | |
| Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Record Rate | Incoming Bandwidth: 40Mbps Outgoing Bandwidth: 40Mbps |
|
| Others | Audio Compression: G.711A, G.711U | |
| Video Detection And Alarm | ||
| Video Detection | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD) | |
| Alarm Input | Yes | |
| Playback And Backup | ||
| Sync Playback | 4 channel | |
| Search Mode | Face Search, Behavior Search | |
| Network | ||
| Ethernet Port | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| Maximum User Access | Remote Users: 128 | |
| Storage | ||
| Internal HDD | 1 SATA interface | |
| HDD Mode | Up to 6TB | |
| Auxiliary Interface | ||
| USB | Rear panel: 2 x USB2.0 | |
| Power | ||
| Power Supply | 12V DC | |
| Power Consumption | ≤ 5 W (without HDD) | |
| Component Environment | ||
| Operational Conditions | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | |
| Construction | ||
| Dimensions | 260mm × 240mm × 46mm (10.2″×9.4″×1.8″) | |
| Net Weight | ≤0.98kg (2.16 lb) | |
| Warranty | ||
| Manufacturing Warranty | 1 year Warranty | |
Description
Uniview NVR301-04LS2 4 Channel 1 SATA NVR
The Uniview NVR301-04LS2 NVR is a comprehensive 4 channel NVR (Networ Video Recorder) designed to meet a wide range of video surveillance demands. As a Uniview NVR, This Uniview NVR provides great performance and dependability by supporting Ultra 265, H.265, and H.264 video formats for superior compression and high-quality playback. This Uniview 4 channel NVR has a single SATA interface and can accommodate up to 6TB of storage, making it a great choice for recording large amounts of surveillance footage. The Uniview NVR301-04LS2 NVR provides crystal-clear video quality, capturing every detail. It has HDMI and VGA outputs that enable for simultaneous display and supports up to 6MP resolution recording. Uniview NVR301-04LS2 expands its capabilities by enabling third-party IP cameras using ONVIF protocols, assuring compatibility between systems. The Uniview 4-channel NVR's user-friendly interface enables easy operation and remote access, making it an ideal solution for managing surveillance networks. In addition to these functions, it includes smart alarm capabilities like intrusion detection and video loss notifications for further security. The Uniview NVR301-04LS2 NVR is perfect for small to medium-scale surveillance systems, providing consumers with consistent performance and peace of mind.
