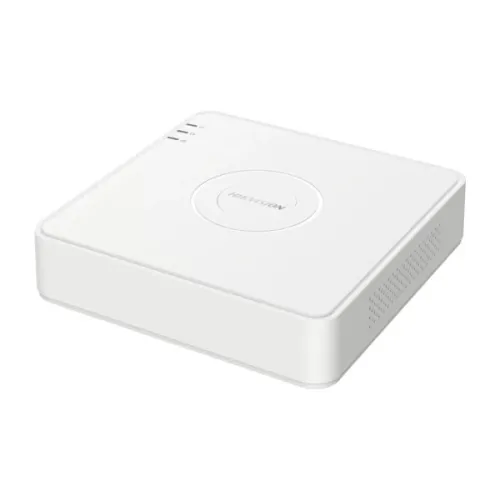

Hikvision DS-7104HGHI-ECO/M1 4-Channel Mini 1U DVR
The Hikvision DS-7104HGHI-ECO/M1 4-Channel Mini 1U DVR is a high-performance surveillance recorder designed for home and small business security. Supporting HDTVI, AHD, HDCVI, CVBS, and IP cameras, this DVR allows up to 5-channel IP camera input with 1080p resolution, ensuring clear and detailed video monitoring.
Equipped with H.265+/H.265/H.264+/H.264 video compression, it delivers efficient storage while maintaining high-quality footage. Advanced Motion Detection 2.0 uses deep learning to distinguish humans and vehicles, reducing false alarms caused by non-threatening objects. Quick search by object or event type makes reviewing footage fast and easy.
The DVR supports simultaneous playback of up to 4 channels and offers HDMI and VGA outputs up to 1920×1080@60Hz, allowing for multiple viewing options. It also features two-way audio through one RCA input and coaxial channels, enhancing security communication.
With a SATA interface supporting up to 4TB of storage per disk and two USB 2.0 ports, it provides flexible backup and data transfer options. The built-in self-adaptive Ethernet port (RJ45 10/100 Mbps) supports network protocols like TCP/IP, DHCP, Hik-Connect, DDNS, NTP, and HTTPS, enabling remote monitoring for up to 32 users.
Compact and energy-efficient, the Hikvision DS-7104HGHI-ECO/M1 measures 200×200×48 mm and consumes ≤16 W without HDD. Operating reliably between -10°C to 55°C, it’s ideal for secure surveillance in various environments.
Key Features:
-
4-channel Mini 1U DVR with HDTVI, AHD, CVI, CVBS, and IP support
-
Up to 5 IP camera inputs, 1080p resolution
-
H.265+/H.265/H.264+/H.264 compression for efficient storage
-
Deep learning Motion Detection 2.0 for human and vehicle detection
-
HDMI & VGA output up to 1080p@60Hz
-
Two-way audio support
-
SATA interface supporting up to 4TB HDD
-
Ethernet port with TCP/IP, DHCP, Hik-Connect, and remote access
-
Simultaneous 4-channel playback
-
Compact 1U design with low power consumption
-
1-year manufacturing warranty
Perfect for home, office, and small business security, the Hikvision DS-7104HGHI-ECO/M1 ensures reliable monitoring with advanced features and easy network connectivity.
