Nexakey NX-SL48C6 305 Meter CCA UTP Cable
Key Features
- MPN : NX-SL48C6
- Model : NX-SL48C6
- Bandwidth : High-Speed Cat6 up to 250MHz
- Conductor 23 AWG Copper-Clad Aluminum :
- Four insulated twisted pairs with HDPE insulation :
- Riser-Rated PVC Jacket (CMR) Durable PVC outer sheath :
Description

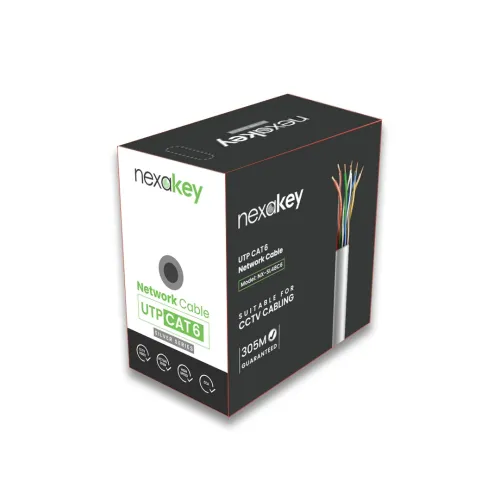

Nexakey NX-SL48C6 305m CCA Cat6 UTP Cable (Riser, CMR)
Build cost-effective high-speed networks with the Nexakey NX-SL48C6. This 305-meter Cat6 UTP bulk cable uses 23AWG CCA conductors to deliver up to 1Gbps performance with 250MHz bandwidth—ideal for LAN drops, PoE devices, IP cameras, and structured wiring in homes, offices, and SMBs. HDPE insulation and a PE cross-separator help cut crosstalk and EMI, while the CMR riser-rated PVC jacket supports vertical runs between floors. Supplied in an easy-pull box for clean installs.
Key Features
-
Cat6 performance: up to 1 Gbps over 100 m; 250 MHz bandwidth
-
23AWG CCA conductors: lighter, budget-friendly alternative to solid copper
-
Signal integrity: HDPE insulation + PE cross-separator to reduce crosstalk/EMI
-
Riser rated (CMR): flame-retardant PVC jacket for vertical riser installs
-
Bulk length: 305 m pull-box for faster, tangle-free deployment
-
Use cases: LAN, patch panels, switches, routers, IP/CCTV surveillance
Specifications
-
Category: Cat6 UTP (Unshielded Twisted Pair)
-
Conductors: 8 (4 pairs), 23AWG CCA
-
Bandwidth: 250 MHz
-
Speed: up to 1 Gbps (up to 100 m)
-
Jacket: PVC, CMR (riser rated)
-
Insulation: HDPE with PE cross-separator
-
Length: 305 meters (pull box)
-
Color: As supplied
-
Warranty: No warranty
