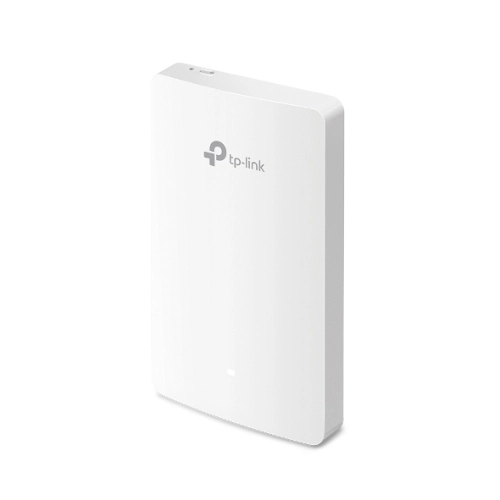

TP-Link EAP235-Wall Omada AC1200 MU-MIMO Gigabit Wall-Plate Access Point

Upgrade in-room Wi-Fi for hotels, offices, classrooms and apartments with the TP-Link EAP235-Wall. This slim, wall-plate access point delivers fast dual-band AC1200 (2.4 GHz + 5 GHz) with 802.11ac Wave 2 MU-MIMO for more devices at once. Integrates with Omada SDN for centralized cloud management, supports 802.3af/at PoE with PoE pass-through, and includes Gigabit downlink ports for wired devices like VoIP phones—no extra power cabling needed. Enterprise security and VLANs keep guest and staff networks isolated. Backed by a 2-year warranty.

Key Features

• AC1200 Dual-Band Wi-Fi: Wave 2 MU-MIMO for smooth multi-user performance

• Omada SDN Cloud Management: Configure and monitor multiple sites from one dashboard or the Omada app

• Wall-Plate Design: Clean, discreet install; ideal for hotel rooms & office cubicles

• PoE In + PoE Pass-Through: Power via 802.3af/at; one downlink port provides PoE to a device

• 4× Gigabit Ports: 1× uplink + 3× downlink for PCs, IPTVs, printers, VoIP phones

• Enterprise Security: Captive portal, 802.1X, WPA/WPA2-Enterprise, rogue AP detection, client isolation

• Network Segmentation: SSID-to-VLAN and LAN port-based VLAN to separate guest and staff traffic

• 2-Year Warranty: Reliable hardware backed by manufacturer support

Technical Specifications

Wireless

• Standards: IEEE 802.11a/b/g/n/ac

• Bands: 2.4 GHz & 5 GHz

• Antennas: 2.4 GHz — 2 × 4 dBi; 5 GHz — 2 × 4 dBi

• Security: 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise, 802.1X EAP, MAC filtering, client isolation

• Captive Portal: Supported

Hardware & Power

• Ports: 4 × Gigabit (1× uplink, 3× downlink); 1 downlink with PoE pass-through

• Power: 802.3af/802.3at PoE-in

• Consumption: 9.8 W (typ.); up to 24.4 W with 13 W PoE output

• Button: Reset

• Dimensions: 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Environment

• Operating Temp: 0–40 °C (32–104 °F) | Storage: −40–70 °C (−40–158 °F)

• Operating Humidity: 10–90% RH non-condensing | Storage: 5–90% RH non-condensing

VLAN & Management

• SSID-to-VLAN, LAN port-based VLAN

• Managed via Omada SDN controller/cloud & Omada mobile app

Warranty

• 02 Years (Manufacturer)
